Photo of these two wheel-fan / aero-covers together; as in addition to a very similar overall design, both happen to be from late 1985.
Impul Pro-Mesh - to suit 14" reverse..
Heroes Racing CX - to suit 14" full-reverse (1" larger face)..
Rad.
Sunday 28 September 2014
Saturday 20 September 2014
NISMO CELEBRATES 30 YEARS OF MAVERICK ENGINEERING
http://www.nissan-motorsports.com/ENN/PRESS/2014/14074.html
This week marks 30years of performance Nissan's out of Nismo in Japan..
This is understandably, all good things..
So since I struggled to browse something interesting that Nismo actually had involvement with; heres the next best thing - a 1984 Nissan! ..yeah!
I LOVE the DR30's, so have no problem with posting them again, and again.. as I have here, here, here, here, here.. and so on.
This 1984 Skyline 2000 Turbo RS-X is the top-of-the-line model. Its bloody gorgeous, frehsened up throughout, and somewhat-justifyably FAR from cheap - at just over 3.5million yen.
Grey over black, gold decals, and matching gold wheels; looking so sharp.
De-badged rear cleans things up a bit further I suppose..
The wheels are the somewhat recently-released GLOW STAR's by STAR ROAD Japan, wrapped in Yokohama S-Drives - which I feel have one of the nicest looking outer tread/block and sidewalls for a street tyre..
These wheels are made by Work for STAR ROAD. 15" dia only, and as wide as 12" -41 if you're keen!
Retrimmed wheel with contrasting stiching looks beautiful, and the original velour looks to be in great shape..
And the suitably tidy engine-bay, showing off the FJ20ET twin-cam four so well. Said it before and I'll say it again - one of my all-time favourite looking engines. Love the wrinkle red, wide cam cover, and long intake runners..
..I really should buy one of those cam covers to stick on the wall...
This week marks 30years of performance Nissan's out of Nismo in Japan..
This is understandably, all good things..
So since I struggled to browse something interesting that Nismo actually had involvement with; heres the next best thing - a 1984 Nissan! ..yeah!
I LOVE the DR30's, so have no problem with posting them again, and again.. as I have here, here, here, here, here.. and so on.
This 1984 Skyline 2000 Turbo RS-X is the top-of-the-line model. Its bloody gorgeous, frehsened up throughout, and somewhat-justifyably FAR from cheap - at just over 3.5million yen.
Grey over black, gold decals, and matching gold wheels; looking so sharp.
De-badged rear cleans things up a bit further I suppose..
The wheels are the somewhat recently-released GLOW STAR's by STAR ROAD Japan, wrapped in Yokohama S-Drives - which I feel have one of the nicest looking outer tread/block and sidewalls for a street tyre..
These wheels are made by Work for STAR ROAD. 15" dia only, and as wide as 12" -41 if you're keen!
Retrimmed wheel with contrasting stiching looks beautiful, and the original velour looks to be in great shape..
And the suitably tidy engine-bay, showing off the FJ20ET twin-cam four so well. Said it before and I'll say it again - one of my all-time favourite looking engines. Love the wrinkle red, wide cam cover, and long intake runners..
..I really should buy one of those cam covers to stick on the wall...
Monday 15 September 2014
Friday 12 September 2014
Coffee table life..
Southern Ways / Epsilon Mesh.
16x14JJ
1982
..Plus a piece of glass..
..aaand an Impul Pro-Mesh aero cover thrown in to brighten things up a bit..!
A Perfect fit..

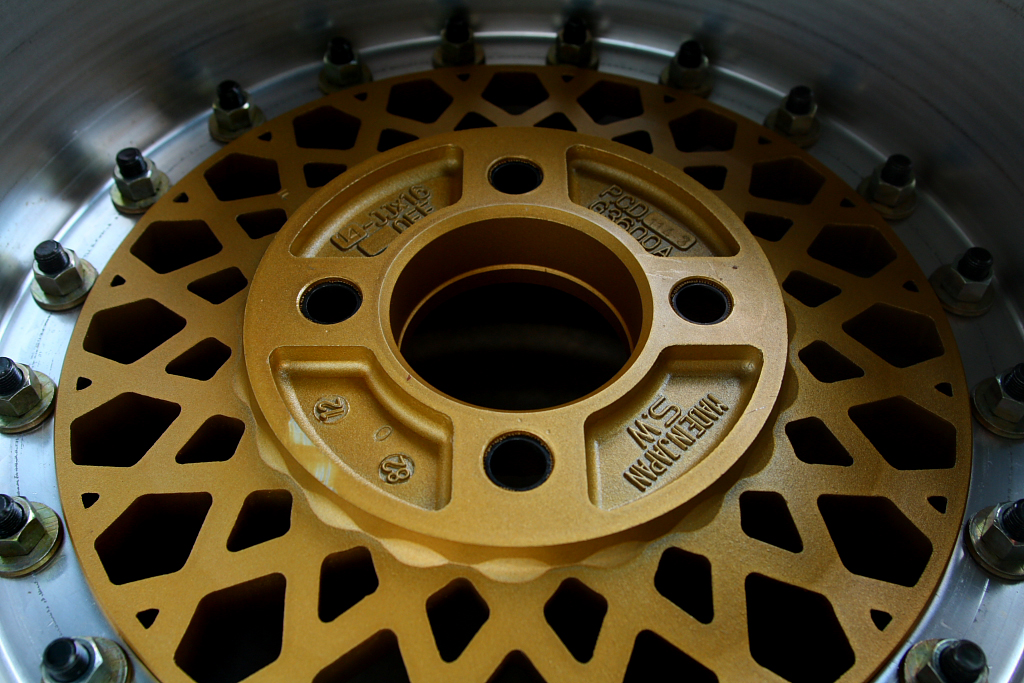

The wheel itself..
32years of interior decoration..
Never mounted, and likely never intended to do anything else..
Original, ferociously-80's, ad for the Epsilon..
Love this.
I had been looking out for a nice single or pair of these wheels for a while, based purely off a love for the period advertisement above. So was absolutely stoked to come across this single wheel on YahooJP a couple months back - and in 16x14JJ? Couldn't ask for anything more. :)
Randomly; a 14" (15" o/all) wide wheel - 381mm, a 900 high bench, and a 20mm lens on a cropped sensor camera...
..means I was standing on a stack of three wheels with my head touching the roof to take those pics.. haha
16x14JJ
1982
..Plus a piece of glass..
..aaand an Impul Pro-Mesh aero cover thrown in to brighten things up a bit..!
A Perfect fit..
The wheel itself..
32years of interior decoration..
Never mounted, and likely never intended to do anything else..
Original, ferociously-80's, ad for the Epsilon..
Love this.
I had been looking out for a nice single or pair of these wheels for a while, based purely off a love for the period advertisement above. So was absolutely stoked to come across this single wheel on YahooJP a couple months back - and in 16x14JJ? Couldn't ask for anything more. :)
Randomly; a 14" (15" o/all) wide wheel - 381mm, a 900 high bench, and a 20mm lens on a cropped sensor camera...
..means I was standing on a stack of three wheels with my head touching the roof to take those pics.. haha
Tuesday 9 September 2014
WORK, EWING, CENTER PACKAGE SYSTEM... and a comparison to the SSR ELECTRON LOCKING SYSTEM.. becauselongtitle..

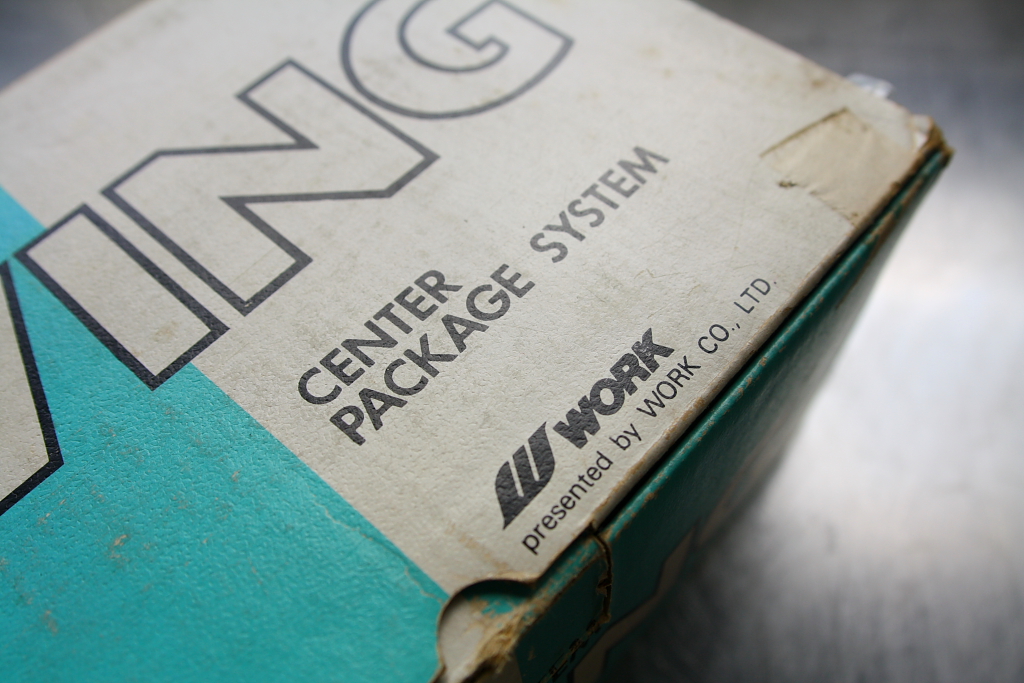

Complete kit of collars and caps, to suit the Work Wheels (/Work Co., Ltd.) EWING wheel...
Not sure why so much effort went into the packaging here (maybe to be sold as a spare part/kit?), but I like it. Nice colours, fun fonts, and so on. Sure beats a plain white box!
..Token plain white boxes inside though!
The WD marked on all the boxes is the key code...
Cap, key, and instructions..
Cap, Key, and O-ring are packaged together...

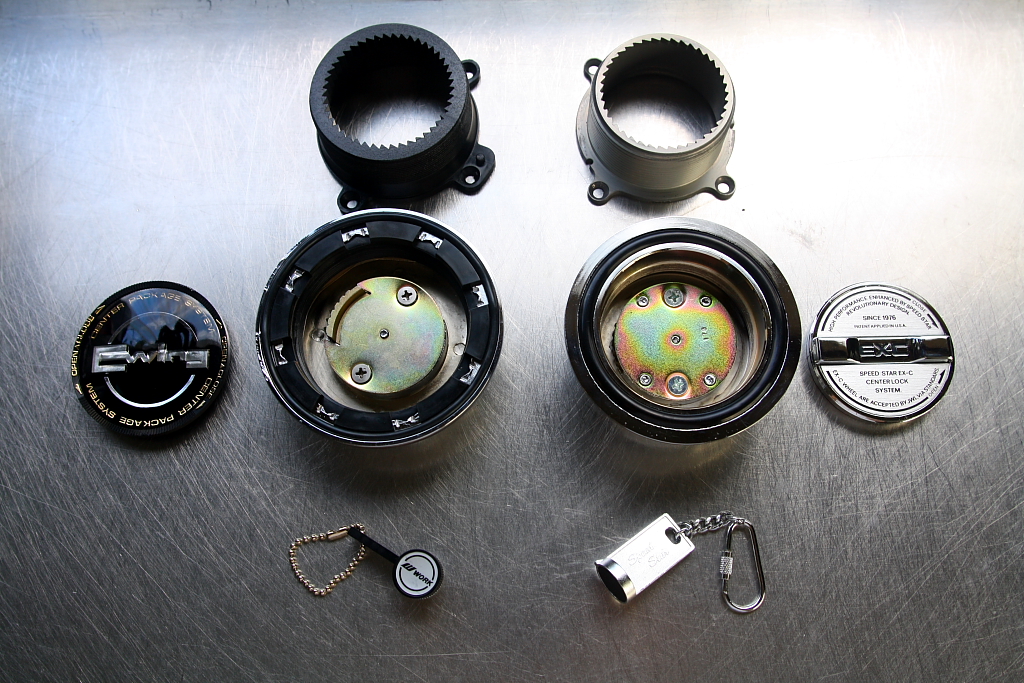

All the components to the cap laid out...
The Work Equivalent to SSR's Electron lock key. Completely different shape and connection... for the same result. The black is plastic, with the key part in an aluminium...
Cap coin removed, and the key against the lock.
A cap comparison between the Work 'Center Package System', and the SSR Electron Lock 'Center Lock System'.
I've shown a cap/collar off a 1988 SSR EX-C Neo, as its one of the few SSR electron lock caps to have a removable 'coin'.. and that just happens to look bloody nice beside the Ewing equivalent.. :P
Coins removed.
Ewing cap requires pushing down, and rotating 45degrees anticlockwise.
EX-C cap requires a turn or two anticlockwise (threaded)..
Keys on the locks...
Underside of the caps. Similar idea for both, using a sliding bar with teeth on the end, to push into matching teeth on the inside of the collar.
Couple differences..
- Work collar is plastic, while the SSR one is aluminium/alloy
- Work cap thread is a plastic insert, while the SSR one is cast into the cap body..
..and most importantly; the size of the extended SSR locking-bar teeth into the collar, allows the cap to ratchet on. Winding the Work cap onto the collar while it is locked, simply results in the cap jamming against the outer face of the teeth...
Rear covers removed, to get a better look at the camp/slide mechanism.
The caps are incredibly similar - to the point of possibly having the same people/company involved in the design..
One small/interestingly little difference between the two caps shown, is the pin that holds the locking-slide's cam roller wheel. Its a solid piece of (brass maybe?) rather than the small piece of tube that the EX-C cap shows. The solid pin is actually happens to be something I've noticed in earlier SSR caps I've opened!
I want to pull the Work caps apart further.. but was hesitant to damage them. I'll keep a lookout for a junk locking cap for that.
Couple more shots of those 'coin's' and keys. Love em.
All in all, It's still the SSR caps for me, for a variety of reasons..
- The small chrome metal key. No plastic. No decals.
- Metal threads for the collars and caps - its just so much more durable.
- The caps ability to ratchet on while locked, complete with a satisfying tool-like 'clink' with every turn..
- The rear of the lock - the sliding bar is almost completely hidden..
- And (ignoring the EX-C Neo cap above) the SSR's lock design, with it's lack of pins going into the lock-front, better lends itself to being exposed. There were plenty of cap designs with no risk of losing the coin of the front of the cap..
.. hell, then there's the overall variety of designs and finishes. Deluxe.
That EWING box though....
.
Not sure why so much effort went into the packaging here (maybe to be sold as a spare part/kit?), but I like it. Nice colours, fun fonts, and so on. Sure beats a plain white box!
..Token plain white boxes inside though!
The WD marked on all the boxes is the key code...
Cap, key, and instructions..
Cap, Key, and O-ring are packaged together...
All the components to the cap laid out...
The Work Equivalent to SSR's Electron lock key. Completely different shape and connection... for the same result. The black is plastic, with the key part in an aluminium...
Cap coin removed, and the key against the lock.
A cap comparison between the Work 'Center Package System', and the SSR Electron Lock 'Center Lock System'.
I've shown a cap/collar off a 1988 SSR EX-C Neo, as its one of the few SSR electron lock caps to have a removable 'coin'.. and that just happens to look bloody nice beside the Ewing equivalent.. :P
Coins removed.
Ewing cap requires pushing down, and rotating 45degrees anticlockwise.
EX-C cap requires a turn or two anticlockwise (threaded)..
Keys on the locks...
Underside of the caps. Similar idea for both, using a sliding bar with teeth on the end, to push into matching teeth on the inside of the collar.
Couple differences..
- Work collar is plastic, while the SSR one is aluminium/alloy
- Work cap thread is a plastic insert, while the SSR one is cast into the cap body..
..and most importantly; the size of the extended SSR locking-bar teeth into the collar, allows the cap to ratchet on. Winding the Work cap onto the collar while it is locked, simply results in the cap jamming against the outer face of the teeth...
Rear covers removed, to get a better look at the camp/slide mechanism.
The caps are incredibly similar - to the point of possibly having the same people/company involved in the design..
One small/interestingly little difference between the two caps shown, is the pin that holds the locking-slide's cam roller wheel. Its a solid piece of (brass maybe?) rather than the small piece of tube that the EX-C cap shows. The solid pin is actually happens to be something I've noticed in earlier SSR caps I've opened!
I want to pull the Work caps apart further.. but was hesitant to damage them. I'll keep a lookout for a junk locking cap for that.
Couple more shots of those 'coin's' and keys. Love em.
All in all, It's still the SSR caps for me, for a variety of reasons..
- The small chrome metal key. No plastic. No decals.
- Metal threads for the collars and caps - its just so much more durable.
- The caps ability to ratchet on while locked, complete with a satisfying tool-like 'clink' with every turn..
- The rear of the lock - the sliding bar is almost completely hidden..
- And (ignoring the EX-C Neo cap above) the SSR's lock design, with it's lack of pins going into the lock-front, better lends itself to being exposed. There were plenty of cap designs with no risk of losing the coin of the front of the cap..
.. hell, then there's the overall variety of designs and finishes. Deluxe.
That EWING box though....
.
